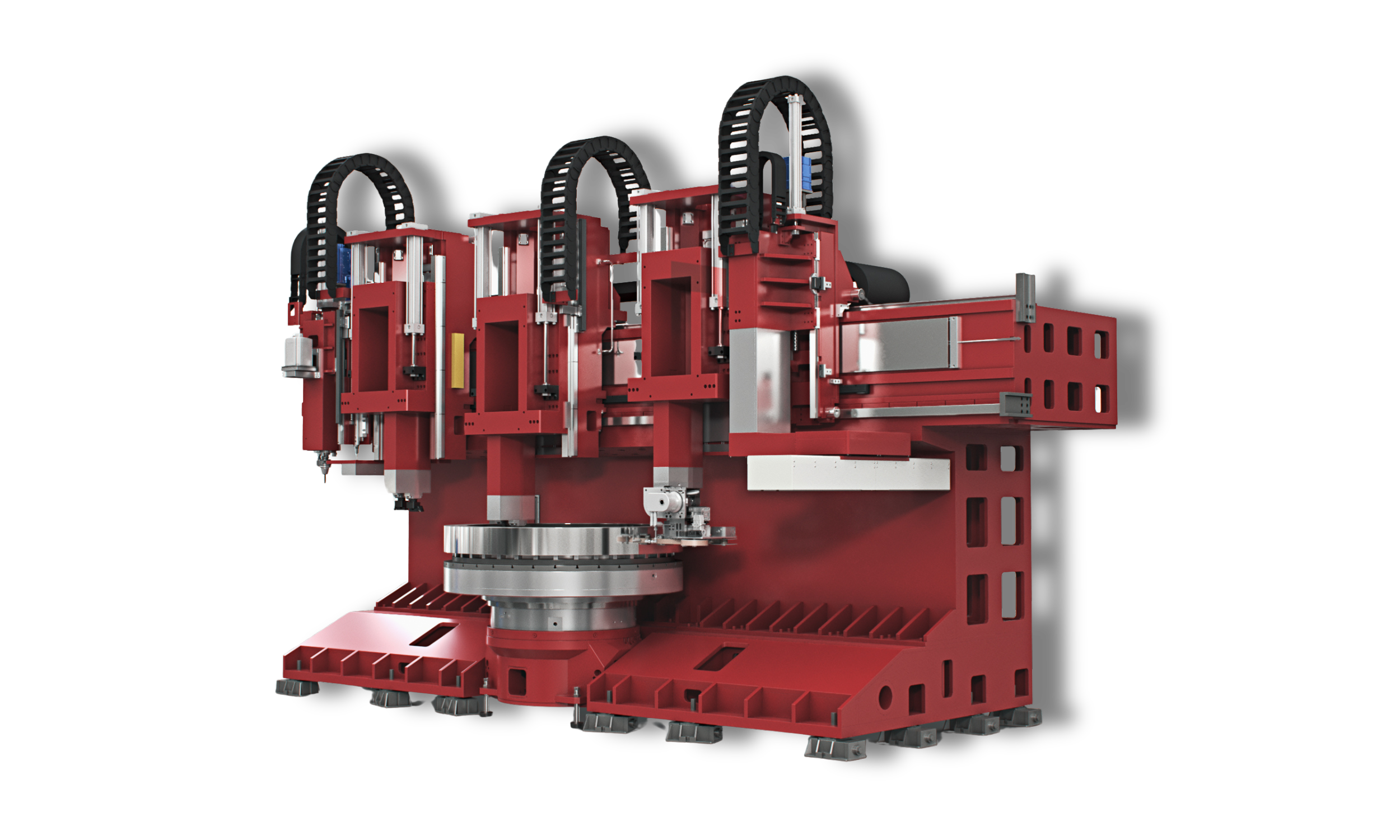

M17 – Combined Machine

Overview

The M17 Combined machine integrates hard turning and superfinishing in a single cycle, eliminating the need for part transfer, re-clamping, and realignment.
This boosts geometric repeatability and drastically reduces overall cycle time — while achieving both dimensional accuracy and ultra-low surface roughness.

Key features

  • Axes: 6
  • Linear Motors
  • Spindle: Direct drive
  • Spindle nose: 930 mm
  • Control system: SINUMERIK ONE
  • Automation: Full self -loading system with magnetic or mechanical loader
  • Tool interface: CAPTO, HSK, VDI
  • ATC: 16 to 56 tools
  • Coolant system: UHPC up to 200 bar; 4 channels

Performance at a glance

  • Max part diameter: 1800 mm
  • Axes max speed (X-Z): 90 m/min - 60 m/min
  • Spindle torque: Nm 5000 (S1) - 11000 (S6)

Process

  • HT Adaptive software for centering
  • In-process monitoring
  • Tool presetting
  • Kistler force and tool monitoring
  • Tool ID System Balluff
  • Remote diagnostics via EWON modem
