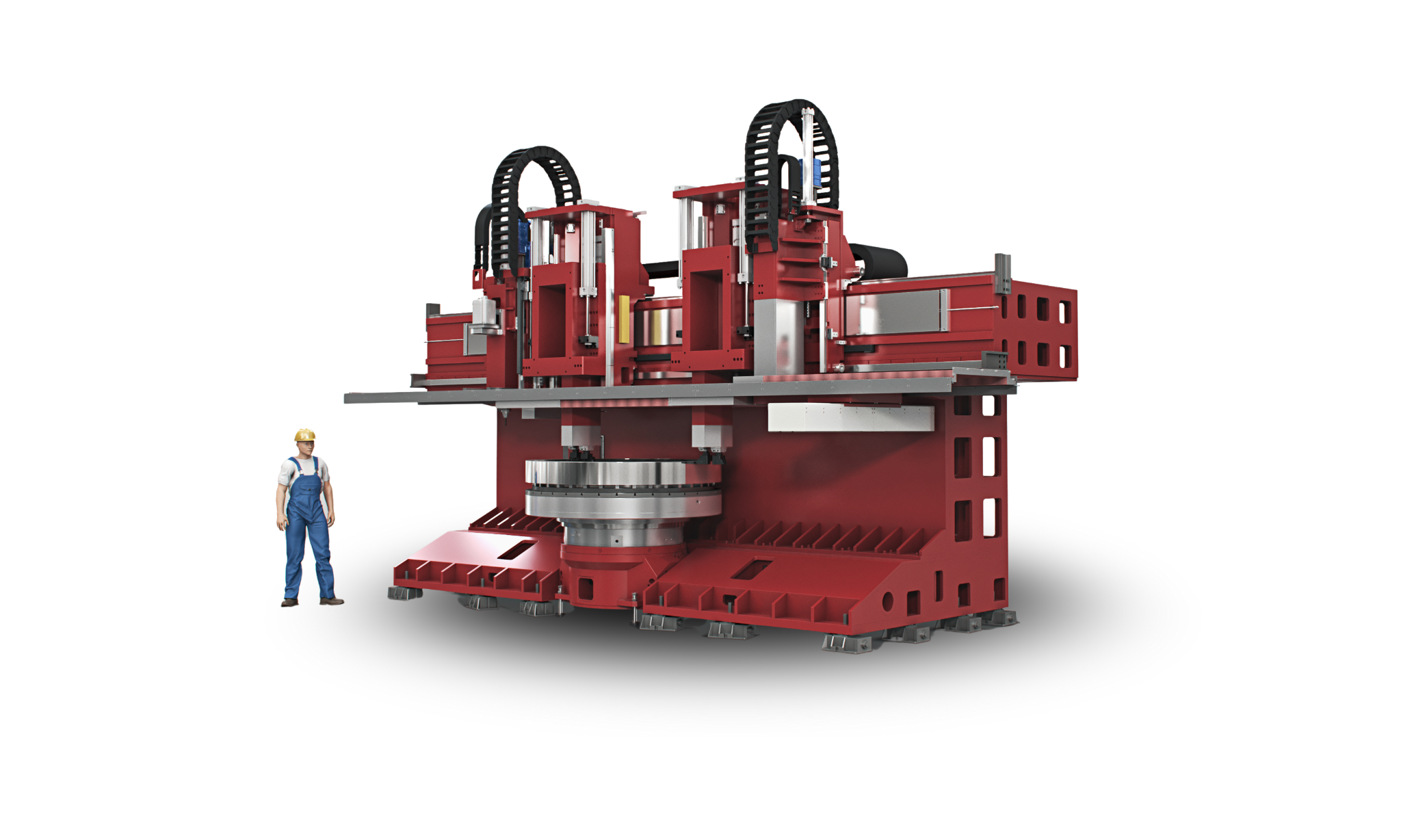

M17 – High Precision Hard Turning
Overview
The M17 is not just built to cut — it’s built to finish.
Configured for hard turning, this version of the M17 delivers surface finishes and tolerances that rival grinding — while reducing cycle time and eliminating secondary processes.
It’s designed for post-heat-treatment components, high hardness materials, and process-critical applications where microns matter.
Key features
- Axes: 4
- Linear Motors
- Spindle: Direct drive
- Spindle nose: 930 mm
- Control system: SINUMERIK ONE
- Automation: Full self -loading system with magnetic or mechanical loader
- Tool interface: CAPTO, HSK, VDI
- ATC: 16 to 56 tools
- Coolant system: UHPC up to 200 bar; 4 channels
Performance at a glance
- Max part diameter: 1800 mm
- Axes max speed (X-Z): 90 m/min - 60 m/min
- Spindle torque: Nm 5000 (S1) - 11000 (S6)
Process
- HT Adaptive software for centering
- In-process monitoring
- Tool presetting
- Kistler force and tool monitoring
- Tool ID System Balluff
- Remote diagnostics via EWON modem
