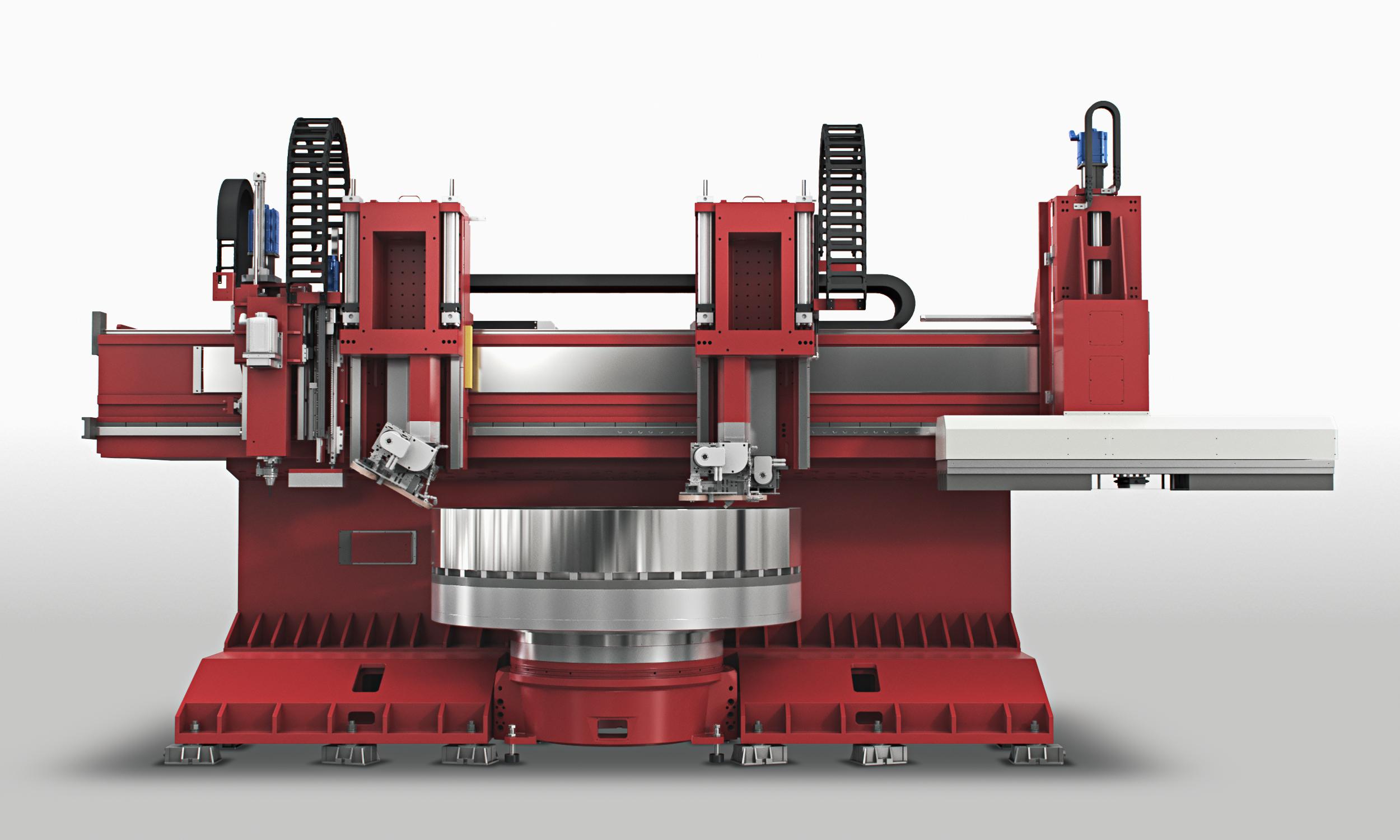

M25 – Superfinishing Machine
Overview
The M25 Superfinishing machine combines large-part handling with micron-level surface control.
Designed for demanding applications in energy, transportation and hydraulics, it integrates stone or tape units with NC-controlled pressure and oscillation — for consistent and repeatable surface enhancement.
Key features
- Axes: 4
- Linear Motors
- Spindle: Direct drive
- Spindle nose: 1400 mm
- Control system: SINUMERIK ONE
- Automation: Full self -loading system with magnetic or mechanical loader
Performance at a glance
- Max part diameter: 2600 mm
- Axes max speed (X-Z): 90 m/min - 60 m/min
- Spindle torque: Nm 12100 (S1) - 23000 (S6)
Process
- HT Adaptive software for centering
- In-process monitoring
- Remote diagnostics via EWON modem
