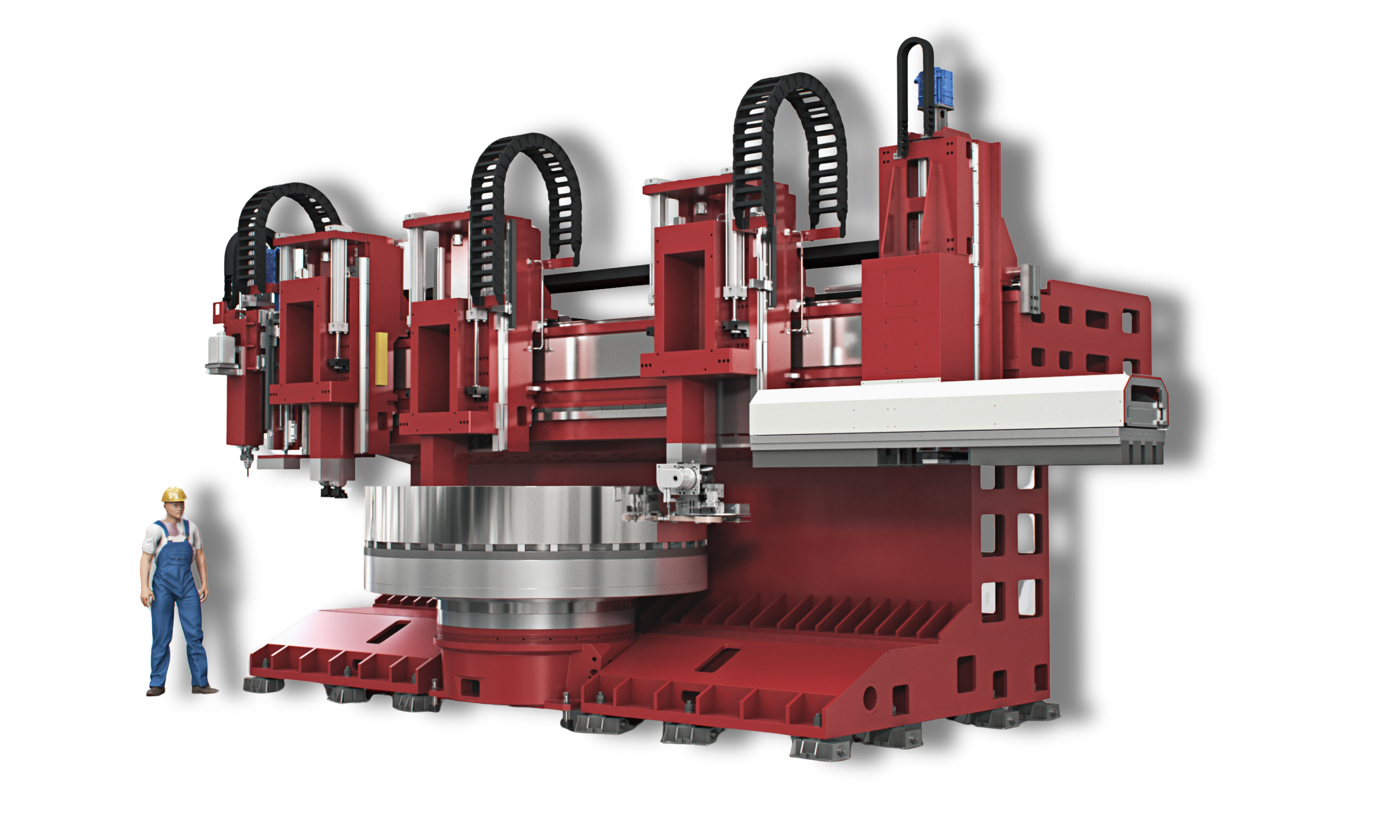

M25 – Combined Machine
Overview
The M25 Combined merges the capabilities of a high-power vertical lathe with fully programmable superfinishing, allowing for continuous machining from rough cut to micro-finish — in a single setup.
It reduces handling risks, preserves alignment, and guarantees the kind of process consistency that separate machines can't match.
Key features
- Axes: 6
- Linear Motors
- Spindle: Direct drive
- Spindle nose: 1400 mm
- Control system: SINUMERIK ONE
- Automation: Full self -loading system with magnetic or mechanical loader
- Tool interface: CAPTO, HSK, VDI
- ATC: 16 to 56 tools
- Coolant system: UHPC up to 200 bar; 4 channels
Performance at a glance
- Max part diameter: 2600 mm
- Axes max speed (X-Z): 90 m/min - 60 m/min
- Spindle torque: Nm 12100 (S1) - 23000 (S6)
Process
- HT Adaptive software for centering
- In-process monitoring
- Tool presetting
- Kistler force and tool monitoring
- Tool ID System Balluff
- Remote diagnostics via EWON modem
