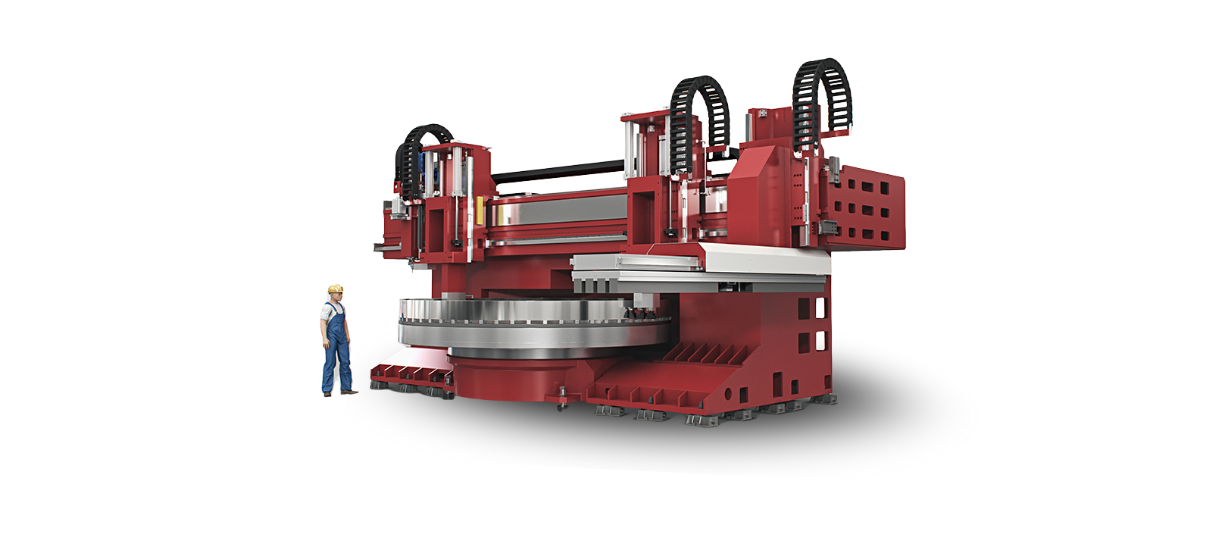

M40 – Turning Machine
Overview
The M40 is the most powerful model in our 4-axis vertical turning range, engineered for extremely large and heavy components. Built with enhanced structural rigidity and a massive spindle, it provides the torque and stability required for hard turning and large-diameter operations.
It’s designed for integration into automated cells and offers full compatibility with adaptive and in-process control technologies.
Key features
- Axes: 4
- Linear Motors
- Spindle: Direct drive
- Spindle nose: 2450 mm
- Control system: SINUMERIK ONE
- Automation: Full self -loading system with magnetic or mechanical loader
- Tool interface: CAPTO, HSK, VDI
- ATC: 16 to 56 tools
- Coolant system: UHPC up to 200 bar; 4 channels
Performance at a glance
- Max part diameter: 4500 mm
- Axes max speed (X-Z): 90 m/min - 60 m/min
- Spindle torque: Nm 25000 (S1) - 40000 (S6)
Process
- HT Adaptive software for centering
- In-process monitoring
- Tool presetting
- Kistler force and tool monitoring
- Tool ID System Balluff
- Remote diagnostics via EWON modem
