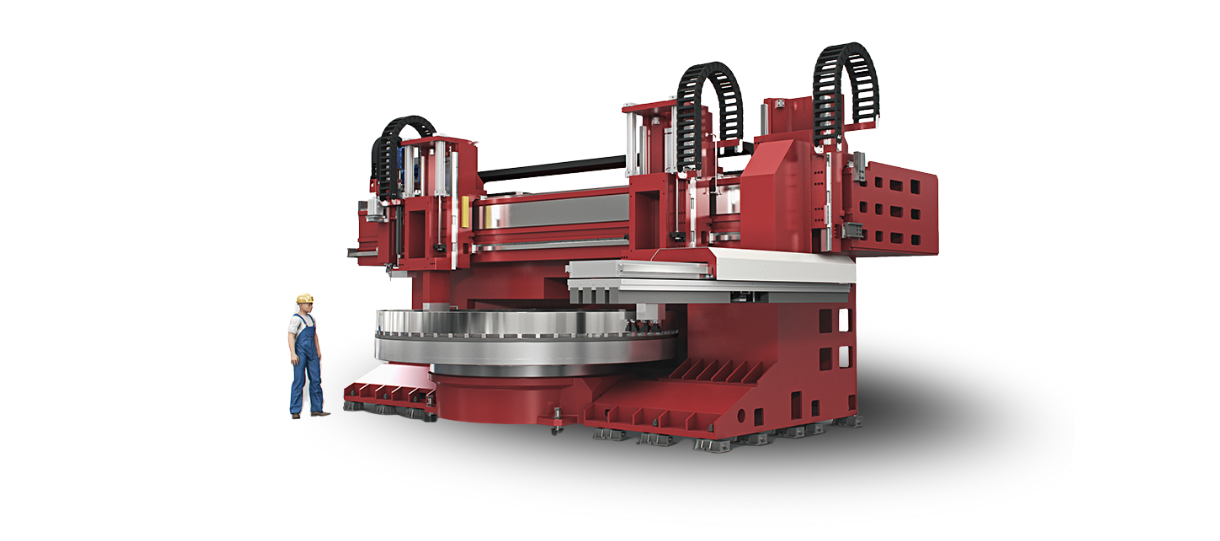

M40 - High Precision Hard Turning
Overview
The M40 combines massive structural rigidity with micron-level control, making it the ideal choice for hard turning of large, post-heat-treated components.
It enables full-process integration: from roughing to fine finishing - with tool monitoring, automatic compensation, and in-process measurement all handled in a single NC cycle.
Key features
- Axes: 4
- Linear Motors
- Spindle: Direct drive
- Spindle nose: 2450 mm
- Control system: SINUMERIK ONE
- Automation: Full self -loading system with magnetic or mechanical loader
- Tool interface: CAPTO, HSK, VDI
- ATC: 16 to 56 tools
- Coolant system: UHPC up to 200 bar; 4 channels
Performance at a glance
- Max part diameter: 4500 mm
- Axes max speed (X-Z): 90 m/min - 60 m/min
- Spindle torque: Nm 25000 (S1) - 40000 (S6)
Process
- HT Adaptive software for centering
- In-process monitoring
- Tool presetting
- Kistler force and tool monitoring
- Tool ID System Balluff
- Remote diagnostics via EWON modem
