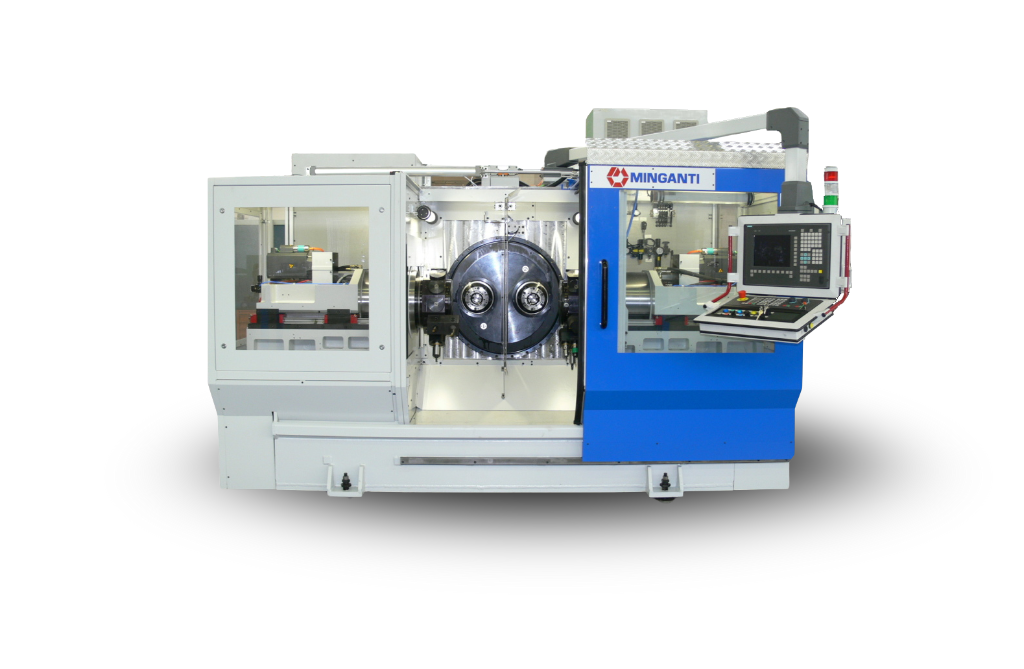

M43 – Horizontal Lathe (2 or 4 axes)
Overview
The M43 is a high-performance horizontal lathe designed for medium-to-large diameter parts. In its 2-axis configuration, it provides high power, automation compatibility, and reliability for serial production of complex components with tight tolerances.
The 4-axis version builds on the same robust platform, offering superior rigidity and enabling full-contour turning, interpolated motion, and advanced tooling setups. This makes it ideal for demanding applications that require enhanced flexibility and precision beyond traditional 2-axis machining.
Key Features
- Axes: 2 or 4
- Linear Motors
- Spindle: electrospindle
- Spindle nose: ASA 8"
- Control system: SINUMERIK ONE
- Automation: 3-axis gantry
- Turret: 8 / 12 positions, with live tools
- Tool interface: CAPTO, HSK, VDI
Performance at a glance
- Max part diameter: 350 mm
- Spindle power: kW 22,5/30
Process
- In-process monitoring
- Remote diagnostics via EWON modem
