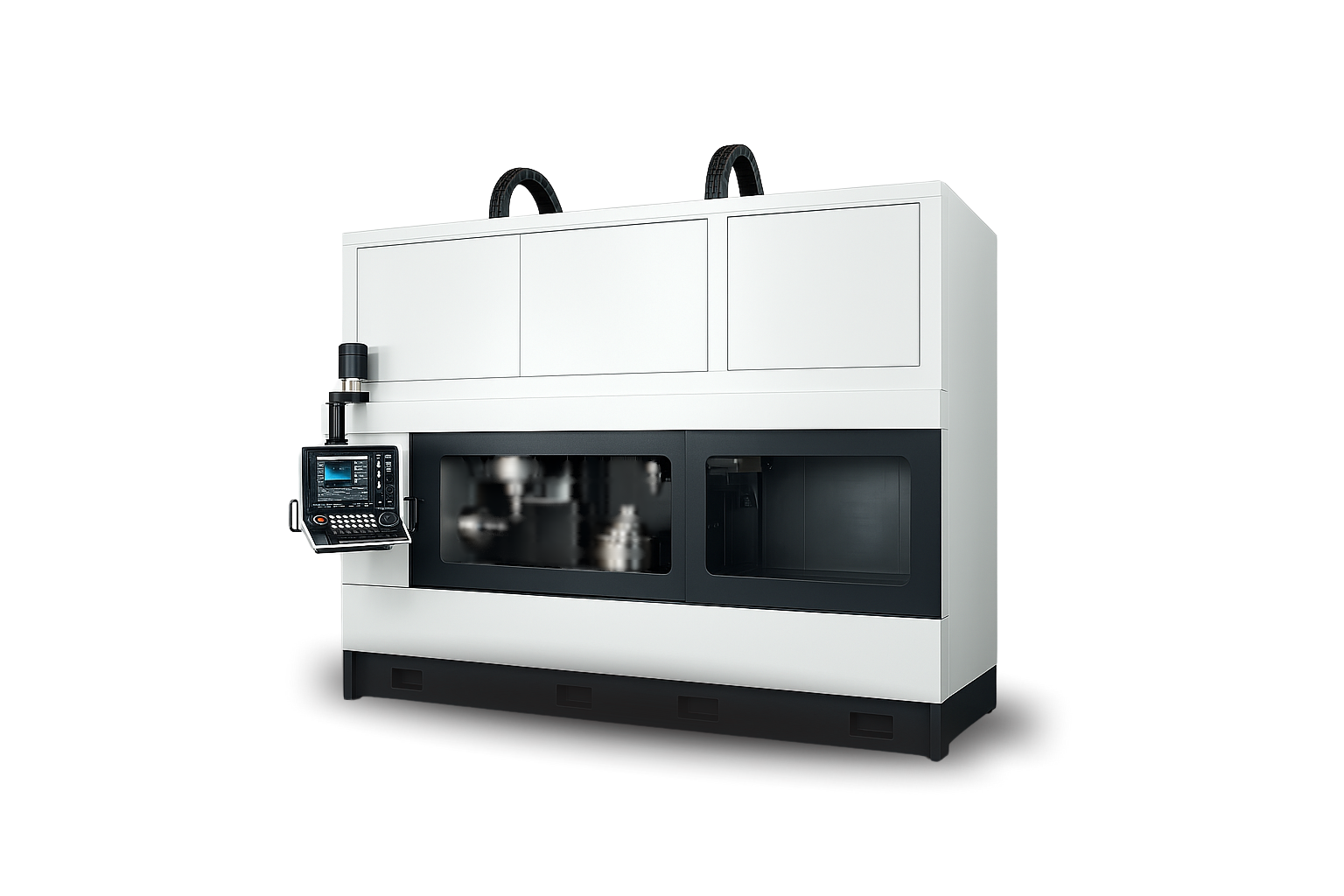

M5 – Hard Turning Machine
Overview
The M5 is designed for high-precision turning of medium-sized parts, with a perfect balance between power, rigidity, and smart automation.
Equipped with direct-drive technology and high-performance linear motors, it ensures tight tolerances, excellent chip management, and full process integration.
Key Features
- Axes: 2 or 4 axes
- Linear Motors
- Spindle: Electrospindle
- Spindle nose: ASA 11"
- Control system: SINUMERIK ONE
- Automation: full self -loading system with magnetic or mechanical loader
- Tool interface: CAPTO, HSK, VDI
- ATC: 16 to 56 tools
- Coolant system: UHPC up to 200 bar; 4 channels
Performance at a glance
- Max part diameter: 700 mm
- Axes max speed (X-Z): 90 m/min - 60 m/min
- Spindle power: kW 22 - 50 (S1)
Process
- HT Adaptive software for centering
- In-process monitoring
- Tool presetting
- Kistler force and tool monitoring
- Tool ID System Balluff
- Remote diagnostics via EWON modem
